How to Capture and Analyze packets with the tcpdump command on Docker Containers

Docker Containers are running on top of Linux so we have more flexibility in capturing the packets that are exchanged between the docker containers.

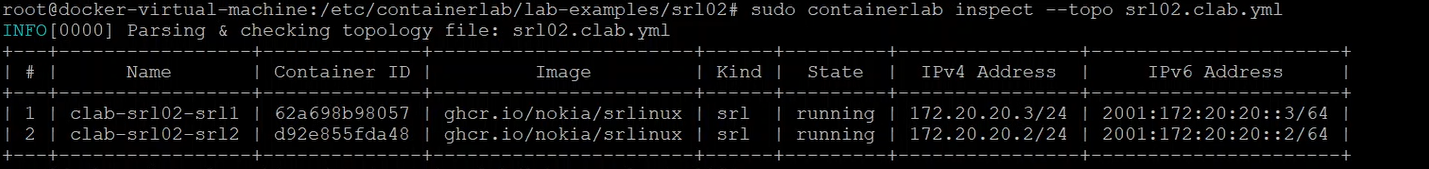

Containerlab at the end of a lab deployment reports that it created the containers with the names

Capturing the packets from an interface requires having that interface name and its network namespace (netns)

We use the netns command  to identify the IP links associated with them and capture the packet for further analysis

Using netns command we got the namespace of the container and use namespace and check the link associated with that container in specific

Use tcpdump command to capture the packet coming to e1 for analysis

Command-List:

ip netns

ip netns <namespace> ip link

Local Capture ip netns exec $lab_node_name tcpdump -nni $if_name Remote Capture ssh $containerlab_host_address "ip netns exec $lab_node_name tcpdump -nni $if_name"
